Battery pack EYFB50B
- 18V Li-Ion battery pack
- High capacity 5.0Ah

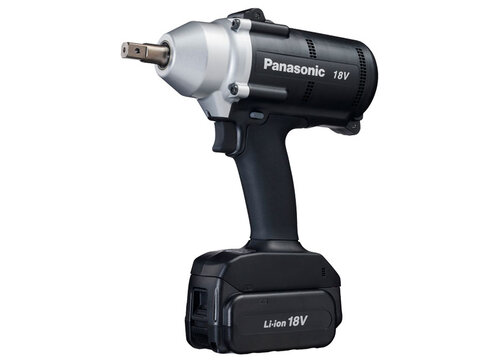

Cordless Mechanical Pulse Tool | ||
---|---|---|
Type | EYFNA1J | |
Chuck Size | 12.7mm Square Drive Pin-hole type | |
Application | M12 (High-Tensile bolt), M14 (Normal, High-Tensile bolt) M16 (Normal bolt), M18 (Normal bolt) | |
Maximum torque | approx.470 N·m (M24 Tensile bolt, F mode, fastening 3sec.) approx.520 N·m (M24 Tensile bolt, F mode, fastening 5sec.) | |
Torque control function operating range | approx. 70—200 N·m | |
Torque Setting | 30 stage + F (without torque setting mode) | |
Flush Detection Mode Applications | L1: For lighter loads during fastener run down L2: For prevailing torque during run down and varying joint rate applications |
|
No load speed (unit : rpm) | 0 ~ 1900 | |
Impact per minute | 0 ~ 2200 | |
Weight*1 (inc. battery) |
approx. 3.0kg | |
Size | Length | 233mm |
Height | approx. 286mm | |
Width | approx. 77mm (Width of battery pack: approx. 76mm) | |
Function | Torque Adjustment | X |
Cross Thread Reduction | X (The tool rotates approx. 360 degree in reverse before fastening starts. Possible to choose ON/OFF) |
|
Rundown Error Detecting | X (Alert with Red light. Possible to set between 0 ~ 3 sec.. 0.1 sec. per stage) |
|
Maintenance Interval Alarm Function | X (Possible to set between 0 - 990,000 times. 10,000 times per stage) |
|
LED Light | X (Possible to choose from the 2 LED light modes, by ON/OFF switch or trigger switch interlocked) |
|
Buzzer | X (Possible to choose from the 3 buzzer modes, No buzzer, buzzer with OK or buzzer with NOK) |
|
Tightening confirmation lamp | X (OK fastening: Green lamp. NOK fastening: Red lamp) |
|
Battery indication lamp | X (3 stage) |
|
Auto-Power Stop function | X | |
Application Capacity/ Working Speed | approx.500pcs/pack <M12: 100 N·m, Stage: 13> | |
Charging time | Usable Charge: approx. 65 min. Full Charge: approx. 80 min (Battery pack EYFB50B, Charger EY0L82B) |
Notes:
*1 Weights are described in 0.05kg increment.
There are models limited to particular region.
Battery pack is not included.
