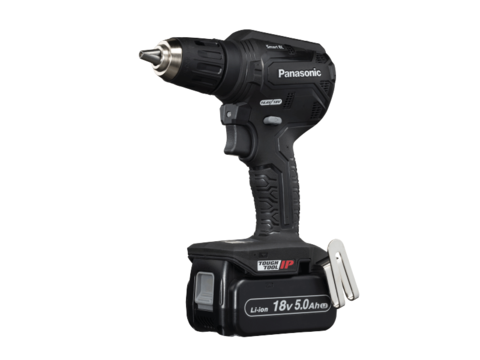

Cordless Drill & Driver EY1DD1 | 2022-03-31 | 1.57 MB | English |
Akku-Bohrschrauber EY1DD1 | 2022-03-31 | 1.23 MB | German |
Chuck | Keyless chuck (Ø1.5 to Ø13mm) | |||
---|---|---|---|---|
Maximum torque | Stalling torque: {18V} Low speed: 30Nm, High speed: 11 Nm Instant torque: {18V} Low speed: 50Nm {14.4V} Low speed: 40Nm |
|||
Speed at no Load | {18V} High speed: 70 - 1,800 rpm, Low speed: 20 - 530 rpm {14.4V} High speed: 70 -1,450 rpm, Low speed: 20 - 430 rpm |
|||
Clutch torque | {18V} High speed: 3 - 8 Nm, Low speed: 3 - 18 Nm {14.4V} High speed: 3 - 7 Nm, Low speed: 3 -17 Nm |
|||
Dimensions & weight | 18V / 5.0Ah {EY9L54}: L 160 x H 253 x D 66 mm / 1.88 kg 18V / 3.0Ah {EY9L53}: L 160 x H 237 x D 66 mm / 1.65 kg |
|||
Capacity (approx. with full charge) |
Setting | 18V 5.0Ah | 18V 3.0Ah | |
Drilling | ||||
Holesaw SPC (Ø21 x 1.6 mm) | HIGH/DRILL/-/F | 45 holes | 30 holes | |
Wood / pine (Ø15 x 120 mm) | 280 holes | 170 holes | ||
Wood / pine (Ø21 x 120 mm) | 180 holes | 110 holes | ||
Wood core drill (Ø65 x ceramic siding 16 mm + ply 12 mm) | 45 holes | 30 holes | ||
Driving | ||||
Coach bolt / pine (Ø6 x 80 mm) | LOW/DRIVE/29/ F | 210 screws | 130 screws | |
Coach bolt / pine (Ø8 x 80 mm) | LOW/DRIVE/40/F | 120 screws | 75 screws | |
Tek screw / SPC (Ø6 x 13 mm, thickness 1.6 mm) | HIGH/DRIVE/10/F | 930 screws | 560 screws |
Model# | EY1DD1J18D | EY1DD1N18D | EY1DD1X | ||
---|---|---|---|---|---|
Universal charger (Li-ion 10.8 - 28.8V) | EYOL82 | X | X | O | |
Battery pack 18V | 5.0Ah (LJ type) | EY9L54 | X x 2 | O | O |
3.0Ah (PN type) | EY9L53 | O | X x 2 | O | |
Support Handle | WEY1DD1F7001 | O | O | O |
X = Standard accessory
O = Optional accessory
