Accu-knikschroevendraaier EY7411LA1S / EY7411LA1C

Accu-knikschroevendraaier

  • 1.5Ah Li-ion batterij
  • 15 minuten bruikbaar en 30min. volledige opladen
  • Lichtgewicht 0.5kg (incl. Batterij)
  • 1/4 "hex drive
  • Screw count functie
  • 'Automatische uitschakelkoppeling' met 21 stappen
  • Elektronisch uitschakelen
  • Vergrendelingsschakelaar
  • Non-slip rubberen grip

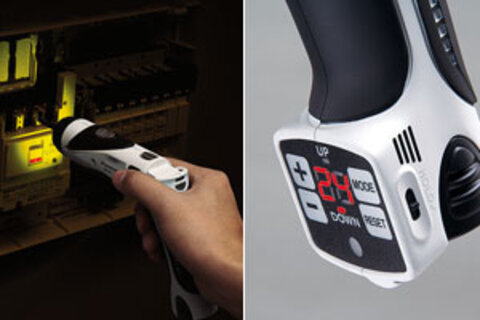

  • LED verlichting
  • Incl. een batterijpakket
  • ESD goedgekeurd (volgens EN55014-1 en -2)
Model / Type EY7411LA1S EY7411LA1C
Spanning 3,6 V 3,6 V
Capaciteit vogens norm iec (technologie) 1,5 Ah (Li-ion) 1,5 Ah (Li-ion)
Oplaadtijd (nuttige / volle lading) 15 / 30 min. 15 / 30 min.
Onbelast toerental (laag / hoog) in omw/min (rpm) 200 / 600 200 / 600
Maximaal koppel (schroeven in zacht / hard materiaal) 1,5 / 4,4 Nm 1,5 / 4,4 Nm
Koppelingskoppel ca. 0,3 – 2,9 Nm ca. 0,3 – 2,9 Nm
Mogelijke koppels 21 21
Koppel per stand ca. 0,1 Nm ca. 0,1 Nm
Afmetingen (Ø x l in staafstand x H in knikstand) 46 x 283 x 148 mm 46 x 283 x 148 mm
Gewicht (incl. accu) 0,5 kg 0,5 kg
Standaard toebehoren 1 x accu EY9L10B
oplaadsysteem EY0L10B
1 x accu EY9L10B
zonder oplaadsysteem
Accu capaciteit
Voltage     3,6 V
Model     EY7411LA1S
  Schroeven in grenen Ø 3,1 x 13 mm 600
Schroeven in metaal (voorgeboord) M5 x 8 mm 1.000
Gaten in OPC t = 1 mm, Ø 2 85
