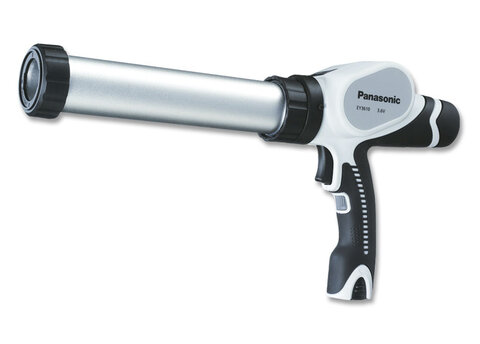

Akku-Kartuschenpistole EY3610LA1J

Akku-Kartuschenpistole

  • 1,5 Ah Li-Ionen-Akku-Leistungsklasse
  • 15 Min. Nutzladung und 30 Min. Vollladung
  • Geringes Gewicht von 2,15 kg (inkl. Akku)
  • Geteilte Schubstange
  • Für Kartuschen und Folienbeutel bis 400 ml
  • Elektronische Drehzahlstabilisierung
  • Vollautomatische Druckentlastung
  • Inkl. einem Akku
Modell / TYP EY3610LA1J
Spannung 3,6 V
Kapazität nach IEC (Technologie) 1,5 Ah (Li-Ionen)
Ladezeit (Nutz- / Vollladung) 15 / 30 Min.
Auspressdruck 2.450 N (250 kgf)
Abmessungen (B x L x H) 142 x 501 x 259 mm
Gewicht (inkl. Akku) 2,15 kg
Standardzubehör 1 x Akku EY9L10B
 Ladesystem EY0L11B
Akkukapazitäten
Voltage 3,6 V
Modell EY3610LA1J**
Silikon 50 Stück
Acryl 50 Stück
Polyethelen 30 Stück
* Temperatur 20°C Ø 5 mm Lochgröße, 310 ml Kartusche
** Temperatur 20°C Ø 5 mm Lochgröße,
Silikon: Sikaflex-M1 320 ml Kartusche,
Acryl: Konishi 330 ml Kartusche,
Polyethelen: Sikaflex-221 320 ml Kartusche
