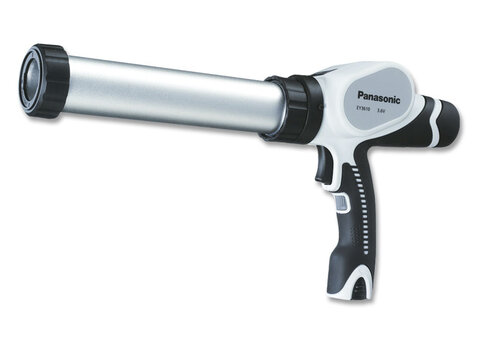

Cordless Sealing Gun EY3610LA1J

Cordless Sealing Gun

  • 1.5Ah Li-ion battery pack
  • 15min. usable and 30min. full charging
  • Light weight 2.15kg (incl. battery)
  • Double extending rack keeps body compact
  • For cartridge and foil pack up to 400ml
  • Electric speed control
  • Fully automatic decompression
  • Incl. one battery pack
Model / Type EY3610LA1J
Voltage 3.6V
Battery capacity accord. to IEC (technology) 1.5Ah (Li-ion)
Charging time (usable / full) 15 / 30min.
Pushing pressure 2,450N (250kgf)
Size (W x L x B) 142 x 501 x 259mm
Weight (incl. battery) 2.15kg
Standard accessories

1 x battery EY9L10B
charger EY0L11B

Battery capacities
Voltage 3.6V
Model EY3610LA1J**
Silicon 50pcs
Acrylic 50pcs
Polyuethane 30pcs
* Temperature 20°C Ø 5mm cutting hole, 310ml catridge
** Temperature 20°C Ø 5mm cutting hole,
Silikon: Sikaflex-M1 320ml catridge,
Acryl: Konishi 330ml catridge,
Polyethelen: Sikaflex-221 320ml catridge
