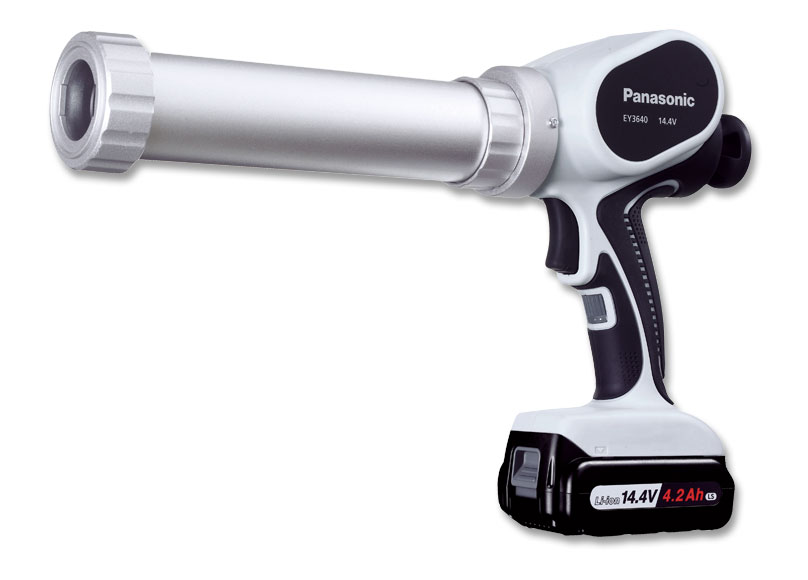

Akku-Kartuschenpistole EY3640LS1S / EY3640K

Akku-Kartuschenpistole

  • Leistungsstarker 4,2 Ah Li-Ionen-Akku*
  • 50 Min. Nutzladung und 60 Min. Vollladung
  • Geringes Gewicht von 2,65 kg (inkl. Akku)*
  • Für 310 ml Kartuschen
  • Elektronische Drehzahlstabilisierung
  • Vollautomatische Druckentlastung
  • Inkl. einem Akku*
Modell / TYP EY3640LS1S EY3640K
Spannung 14,4 V 14,4 V
Kapazität nach IEC (Technologie) 4,2 Ah (Li-Ionen) *
Ladezeit (Nutz- / Vollladung) 50 / 60 Min. *
Auspressdruck 4.410 N (450 kgf) *
Abmessungen (B x L x H) 140 x 424 x 245 mm *
Gewicht (inkl. Akku) 2,65 kg *
Standardzubehör 1 x Akku EY9L45B
Ladesystem EY0L82B
inkl. Koffer
ohne Akku
ohne Ladesystem
inkl. Koffer

* Beim K-Typ (EY3640K) Lieferumfang ohne Akku und Ladesystem.

Akkukapazitäten
Voltage   14,4 V
Modell   EY3640LS1S*
Silikon   380 Stück
Acryl   410 Stück
Polyethelen   190 Stück
* Temperatur 20°C Ø 5 mm Lochgröße, 310 ml Kartusche
** Temperatur 20°C Ø 5 mm Lochgröße,
Silikon: Sikaflex-M1 320 ml Kartusche,
Acryl: Konishi 330 ml Kartusche,
Polyethelen: Sikaflex-221 320 ml Kartusche
