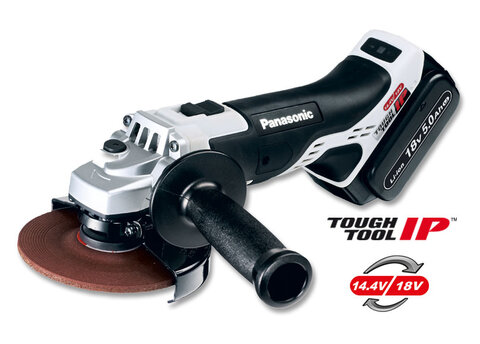

Cordless Angle Grinder EY46A2LJ2G / EY46A2X

Cordless Angle Grinder

  • 18V / 14.4V Dual voltage interface
  • Light weight 2.35kg*
  • Speed at no load 10.000 min-1 (rpm)*
  • For 125mm discs
  • Spindle lock for easy disc changes

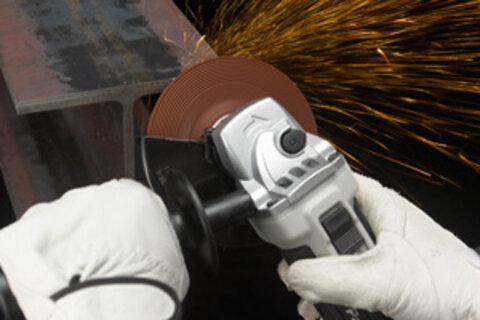

  • Separating, cutting and grinding
  • Re-start function
  • Incl. 2 battery packs 18V with 5.0Ah

* Information for using 18V Li-ion battery with 5.0Ah.

Model / Type EY46A2LJ2G EY46A2X
Voltage 18V 18V / 14.4V
Battery capacity accord. to IEC (Technology) 5.0Ah (Li-ion) *
Charging time (usable / full) 65 / 80min. *
Speed at no load in rpm 10.000 *
Disc size (outer Diameter) 125mm *
Size (W x L x B) 105 x 345 x 141mm *
Weight (incl. battery) 2.35kg *
Standard accessories (battery / charger / plastic box) 2 x battery EY9L54B
Charger EY0L82B
incl. plastic box
without
without
without

* X-type (EY46A2X) without battery and charger.

Battery capacities
Voltage   18V
Model   EY46A2LJ2G
Battery   EY9L54B(LJ)
Reinforcing bar Ø 10 mm 140pcs/charge
W3/8 Continuous thread stud (Mild steel)   180pcs/charge

Product downloads

Others

Description Release date File size Language
Conditions d'extension de garantie 2022-02-15 85.41 KB fr
Bedingungen der erweiterten Garantie 2022-02-15 194.81 KB de
Villkor för utökad garanti 2022-02-15 94.99 KB
Betingelser i utvidet garanti 2022-02-15 186.1 KB
Voorwaarden voor de verlengde garantie 2022-02-15 191.6 KB nl
Condizioni di estensione di garanzia 2022-02-15 166.65 KB
Nieuws Garantie uitbreiding 2022-02-15 112.34 KB nl
News Garantieerweiterung 2022-02-15 139.79 KB de
News Extended warranty 2022-02-15 139.69 KB en
Laajennetun takuun ehdot 2022-02-15 161.45 KB
Conditions of extended guarantee 2022-02-15 197.01 KB en

Brochures

Description Release date File size Language
Guarantee / Garantie 2022-02-15 753.82 KB en,nl,de
Overview standard / optional accessories / charging times 2022-02-15 75.11 KB en

Catalogues

Description Release date File size Language
Standard-, Sonderzubehör-Übersicht, Ladezeiten 2022-02-15 81.37 KB de
Battery compatibility overview 2022-02-15 3.21 MB en
Standaard- en speciale toebehoren-overzicht, oplaadtijd 2022-02-15 75.2 KB nl
Catalogus 2016 2022-02-15 5.56 MB nl
Catalogue 2016 2022-02-15 4.81 MB en

Compatibility infos

Description Release date File size Language
Vibration List 2022-02-15 30.37 KB en

Operating Instructions

Description Release date File size Language
Operating Instructions Cordless Angle Grinder EY46A2 2022-02-15 5.05 MB en,nl,fr,de,es
