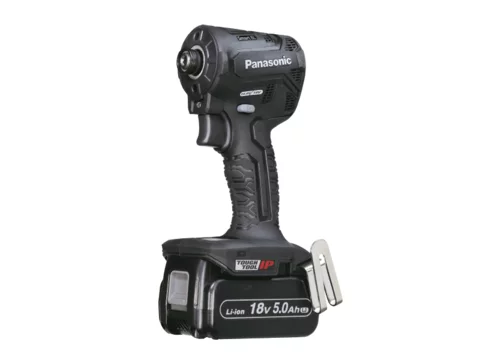

Cordless Impact Driver EY1PD1

Cordless Impact Driver

  • Access all areas. High power impact tightening - even in tight areas
  • 3 x 'flat' innovations greatly shorten the body length
  • A masterpiece of design and technology
  • Our most versatile impact driver ever
  • Smooth easy operation
  • Impact torque and speed selection
  • Extremely short body 98mm
  • Light weight: 1.5kg (with 5.0Ah battery pack)
  • New easy one-touch bit locking system
  • Tight - distance: Extremely short body length 98mm!
  • Tight - corner: Minimal center height 13mm!
  • Tight - angle: Small right-angle head 36mm x 53mm!

Specifications

Chuck One touch bit lock system (6.35mm 11/4 ") Hex)
Maximum Torque (forward/ reverse) {18V} High Mode: 155 Nm, Medium Mode: 120 Nm, Low Mode: 40 Nm
{14.4V} High Mode: 140 Nm, Medium Mode: 120 Nm, Low Mode: 40 Nm
Speed at no load High Mode: 0 - 2,700 rpm, Medium Mode: 0 - 1,600 rpm, Low Mode: 0 - 1,000 rpm, Tek Mode: O - 2,700 rpm
Impact per minute High Mode: 0 - 4,100 ipm, Medium Mode: 0 - 3,100 ipm, Low Mode: 0 - 2,100 ipm, Tek Mode: 0 - 2,100 ipm
Dimensions & weight 18V / 5.0Ah (EY9L54): L 98 x H 243 x D 59 mm / 1.5 kg
18V / 3.0Ah (EY9L53): L 98 x H 227 x D 59 mm / 1.3 kg
Capacity
(approx. with full charge)		   18V 5.0Ah 18V 3.0Ah
Screwing
Wood Screws in Yellow Pine (ø4.2 mm x 75 mm) 550 screws 330 screws
Self-Drilling Screws in SPC (ø4 mm x 13 mm t=1.6 mm) 1,100 screws 660 screws
Drilling
DL core ø21, Plaster Board 12.5mm + Plywood 12.5mm 150 holes 100 holes
Soft concrete hole (ø3.5 x 30mm, Mortar) 570 screws 340 screws



Model # EY9HX500
Eccentric attachment		 EY9HX501
Right-angle attachment
Chuck One touch bit lock system (6.35mm (1/4") Hex)
Center height 13mm 18mm
Head height -- 53mm
Mounting angle 8 directions (45 degree increments)
Dimensions & weight Total length 97mm 290g Total length 103mm 250g
Working range Screwing
Wood Screws in Yellow Pine / ø3.5 ~ ø6.8
Self-Drilling Screws in SPC (t=1.6mm) / ø3.5 ~ ø6
Drilling
-- Wood drill, Particle board
(t=20rnm) / ~ø35
-- Woodworking hole saw,
Particle board (t=20mm) / ~ø36



Accessories

  Model# EY1PD1J18D EY1PD1N18D EY1PD1XT EY1PD1X
Universal charger (Li-ion 10.8 - 28.8V) EY0L82 X X O O
Battery pack 18V 5.0Ah (LJ type) EY9L54 X x 2 O O O
3.0Ah (PN type) EY9L53 O X x 2 O O
Eccentric attachment EY9HX500 O O O O
Right-angle attachment EY9HX501 O O O O
Tool case TOOLBOX2DD X X X O

X = Standard accessory
O = Optional accessory
