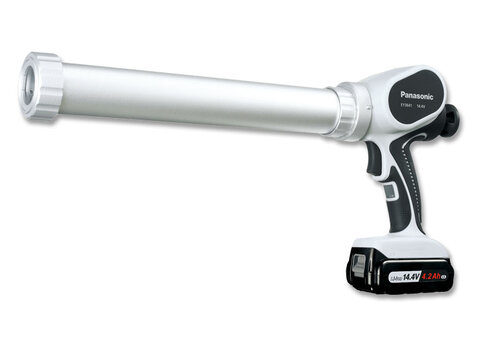

Cordless Sealing Gun EY3641LS1S / EY3641K

Cordless Sealing Gun

  • New high-performance 4.2Ah Li-ion battery pack*
  • 50min. usable and 60min. full charging
  • Light weight 2.8kg (incl. battery)*
  • For cartridge and foil pack up to 600ml
  • Electric speed control
  • Fully automatic decompression
  • Incl. one battery pack*
Modell / TYP EY3641LS1S EY3641K

Voltage

14.4V 14.4V
Battery capacity accord. to IEC (technology) 4.2Ah (Li-ion) *
Charging time (usable / full) 50 / 60min. *
Pushing pressure 4,410N (450kgf) *
Size (W x L x B) 140 x 560 x 245mm *
Weight (incl. battery) 2.8kg *
Standard accessories 1 x battery EY9L45B
charger EY0L82B
incl. plastic box

without battery
without charger
incl. plastic box

* K-type (EY3641K) without battery and charger.

Battery capacities
Voltage   14.4 V
Model   EY3641LS1S*
Silicon   380pcs
Acrylic   410pcs
Polyuethane   190pcs
* Temperature 20°C Ø 5mm cutting hole, 310ml catridge
** Temperature 20°C Ø 5mm cutting hole,
Silikon: Sikaflex-M1 320ml catridge,
Acryl: Konishi 330ml catridge
Polyethelen: Sikflex-221 320ml catridge
