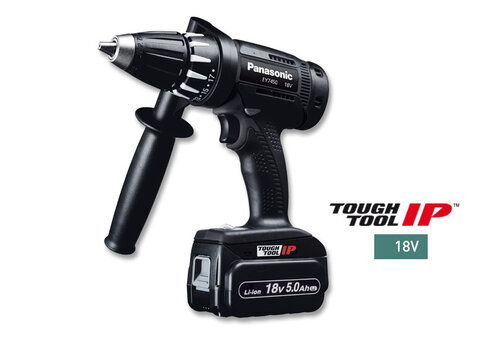

Cordless Drill & Driver EY7450LJ2S / EY7450X

Cordless Drill & Driver

  • High-performance 5.0Ah Li-ion battery pack*
  • 65min. usable and 80min. full charging
  • Light weight 2.15kg (incl. battery)*
  • High performance with max. 57Nm
  • 18-stage clutch plus drill position
  • 13mm high-capacity drill chuck (keyless)
  • Electric speed control
  • Electric brake
  • Reversible
  • Compact body
  • LED light
  • Incl. second battery pack*
  • ESD approved (as per EN 55014-1 and -2)
Model / Type EY7450LJ2S EY7450X
Voltage 18V 18V
Battery capacity accord. to IEC (technology) 5.0Ah (Li-ion) *
Charging time (usable / full) 65 / 80min. *
Speed at no load in rpm low 50 – 430
high 160 – 1.650
*
Max. torque (stalling / instant torque) 40 / 57Nm *
Clutch torque 1.0 – 6.9Nm *
Clutch stages 18 + drill position *
Max. drilling diameter (in wood / in metal) 36 / 13mm *
Max. holesaw size (in wood / in metal) 65mm / - *
Size (W x L x B) 63 x 218 x 248mm *
Weight (incl. battery) 2.15kg *
Standard accessories 2 x battery EY9L54B
charger EY0L82B
incl. plastic box
without battery
without charger
without plastic box

* X-type (EY7450X) without battery and charger.

Battery capacities
Voltage     18V
Model     EY7450LJ2S
Battery     EY9L51B(LJ)
Screwing Wood screws in yellow pine* Ø 4.1mm x 25mm 940pcs
Wood screws in yellow pine** Ø 8mm x 80mm 320pcs
Self-drilling screws in SPC* Ø 3mm x 13mm t = 1.2mm -
Self-drilling screws in SPC* Ø 4mm x 13mm t = 1.6mm 1000pcs
Drilling Holes in plaster board + Plywood/wooding core* Plaster board 12.5mm +
Plywood 12mm Ø 68mm × 24.5mm
85pcs
Holes in plaster board + Plywood** Plaster Board 12.5mm +
Plywood 12mm Ø 125mm × 24.5mm
35pcs
Holes in SPC* Ø 13mm t = 1.6mm 300pcs
Holes in SPC/hole saw* Ø 21mm t = 1.6mm 45pcs
Holes in SPC/hole saw** Ø 33mm t = 1.6mm 45pcs
Holes in yellow pine* Ø 18mm x 120mm 140pcs
Holes in yellow pine** Ø 30mm x 40mm 170pcs
* High mode ** Low mode
