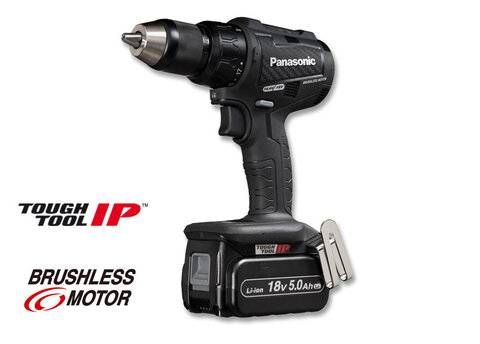

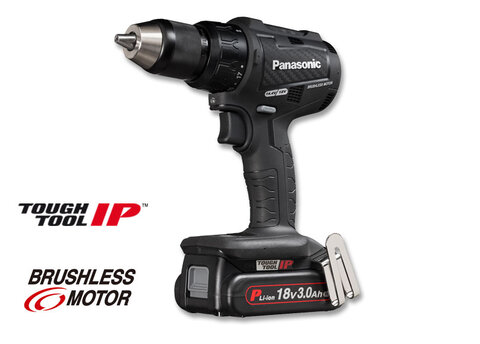

Cordless Hammer Drill & Driver EY79A3LJ2G / EY79A3PN2G / EY79A3X

Cordless Hammer Drill & Driver

  • Durable design with compact body 188mm
  • Smaller and lighter with new 3.0Ah P Li-ion battery.
  • High power slim battery 5.0Ah gives full tool performance
  • New metal tapping mode
    For maximum convenience and accuracy, the new 'tapping mode' allows automatic reverse without having to change the toggle.
  • New ‘Speed control function’
  • Electronic speed control
  • Electric brake
  • Belt hook
  • LED light
  • Incl. second battery pack
Model / Type EY79A3LJ2G EY79A3PN2G EY79A3X
Voltage 18V 18V 18V
Battery capacity accord. to IEC (technology) 5.0Ah (Li-ion) 3.0Ah (Li-ion) *
Charging time (usable / full) 65 / 80min. 45 / 60min. *
Speed at no load in rpm 20-530 / 70 -1800 20-530 / 70 -1800 *
Max. torque (stalling / instant torque) 32 / 50Nm 32 / 50Nm *
Percussion mechanism (blows per minute) low 400 - 9.500
high 1.250 - 32.300
low 400 - 9.500
high 1.250 - 32.300
*
Percussion mechanism (blows per minute) 38 / 13 / 33mm 38 / 13 / 33mm *
Size (W x L x B) 68 x 188 x 250mm 68 x 188 x 234mm *
Weight (incl. battery) 2.05kg 2.05kg *
Standard accessories 2 x battery EY9L54B
charger EY0L82B
incl. plastic box
2 x battery EY9L53B
charger EY0L82B
incl. plastic box
without battery
without charger
without plastic box

* X-type (EY79A3X) without battery and charger.

Battery capacities EY79A3LJ2G EY79A3PN2G
Voltage     18 V 18 V
Battery     EY9L54B(LJ) EY9L53B(PN)
Screwing Wood screws in yellow pine* Ø 4.1mm x 25mm 1750pcs 1050pcs
Self-drilling screws in SPC* Ø 4mm x 13mm t = 1.6mm 1250pcs 740pcs
No plug screws in masonry** Ø 6mm x 45mm 790pcs 470pcs
Drilling Holes in SPC/hole saw* Ø 21mm t = 1.6mm 50pcs 30pcs
Holes in SPC/hole saw** Ø 33mm t = 1.6mm 75pcs 45pcs
Holes in mortar* Ø 6.5mm x 30mm 220pcs 130pcs
Holes in mortarl* Ø 10mm x 30mm 160pcs 100pcs
Holes in masonry* Ø 5mm × 40mm depth 260pcs 150pcs
Holes in yellow pine* Ø 18mm x 120mm 140pcs 80pcs
Holes in yellow pine** Ø 30mm x 40mm 280pcs 170pcs
Holes in yellow pine** Ø 36mm x 38mm - -
* High mode ** Low mode
