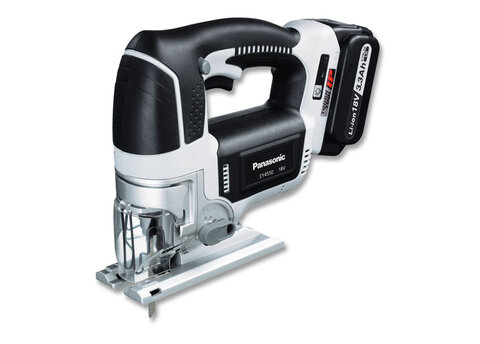

Cordless Jigsaw EY4550X

Cordless Jigsaw

  • High-Performance 5.0Ah Li-ion battery pack*
  • 65min. usable and 80min. full charging
  • Light weight 3.35kg (incl. battery)*
  • 4 stage pendulum for right speed and precision
  • Counter balance mechanism for reduced vibration
  • Cutting angle adjustment (0-45°)
  • Simple blade change mechanism
  • For metal, plastic and wood
  • Electronic stroke rate stabilization
  • Dust blow function
  • Ergonomic design
  • LED light
Model / Type EY4550X*
Voltage 18V
Battery capacity accord. to IEC (technology) 5.0Ah (Li-ion)
Charging time (usable / full) 65 / 80min.
Stroke per minute 2.500
Max. cutting depth 65mm
Stroke length 26mm stroke length
Max. thickness of saw blades 1.6mm
Size (W x L x B) 75 x 290 x 218mm
Weight (incl. battery) 3.35kg
Standard accessories without battery
without charger
without plastic box

* Delivery without battery and charger.

Battery capacities
Voltage   18V
Model   EY4550X
Battery   EY9L54B(LJ)

Plywood

12mm, 15mm 23m/charge

Particle board

t=20mm x 2 13m/charge
