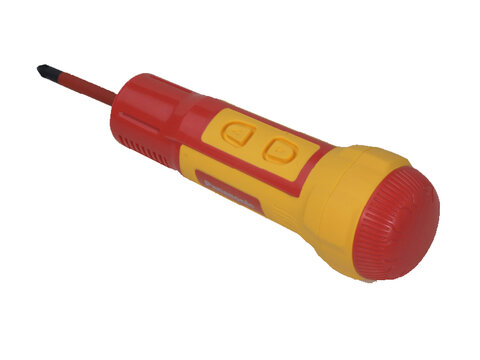

Cordless Insulated Screwdriver EYED11SA
Cordless Screwdriver with Insulated Feature
- Cordless convenience with increased safety and durability
- Compact / Lightweight
Tool body net weight 220g, net length 146mm - Easy and quick fastening
Rund-down driving, powered with 1Nm
Finish tightening, manual up to 8Nm
Convenient single-handed operation in any direction - Recharge any time / any place
Recharge built-in Li-Ion battery with USB Type-CTM cable. Simple and quick charging like smart phones. - Double durable housing structure
- Double-safety insulated bit structure
- IP56 -Dust and water resistance body
Specifications
| Chuck | 6mm Hex for Panasonic insulated bit | ||
|---|---|---|---|
| Maximum instant torque | 1 Nm (Max. screw size: M3) | ||
| Shaft lock durability | up to 8 Nm (Max. screw size: M6) | ||
| Speed at no load | 230 min-1 | ||
| Electric brake | Yes | ||
| LED light | Yes | ||
| Battery (built-in) | Li-ion DC3.7V 850mAh | ||
| Charging terminal | *USB Type-C™ (DC 5V) | ||
| Charging time | 45 minutes with commercial available USB charging adaptor 5V 1A | ||
| Dimensions / Weight | 146 x 46mm / 220g | ||
| Battery capacity (approx. with full charge) |
Small metal screws (without washer) |
M3 x 5 | 690 |
| M3 x 10 | 420 | ||
| M3 x 16 | 180 | ||
| Dust/ Water protection | IP56 | ||
*USB Type-C™ is a trademark of USB lmplementers Forum.

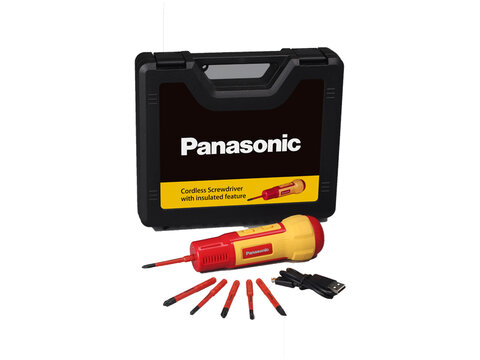

Bit set included
- PZ1 (75mm) x 1
- PZ2 (75mm) x 1
- PH1 (75mm) x 1
- PH2 (75mm) x 1
- SL4.0 (0.8/75mm) x 1
- SL6.0 (1.2/75mm) x 1
Accessories

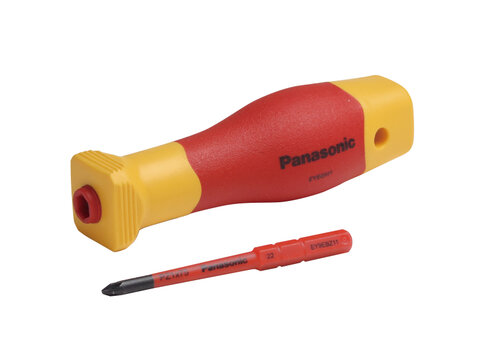

- EYEGH1SA, insulated manual screwdriver grip with PZ1 (75mm) x 1
- EY9EBS01E, 2 pcs lnsulated-Bit Set, PZ1 (75mm) x 1, PH1 (75mm) x 1
- EY9EBS02E, 2 pcs lnsulated-Bit Set, PZ2 (75mm) x 1, PH2 (75mm) x 1
- EY9EBS03E, 2 pcs lnsulated-Bit Set, SL4.0 (0.8/75mml x 1, SL6.0 (1.2/75mm) x 1
